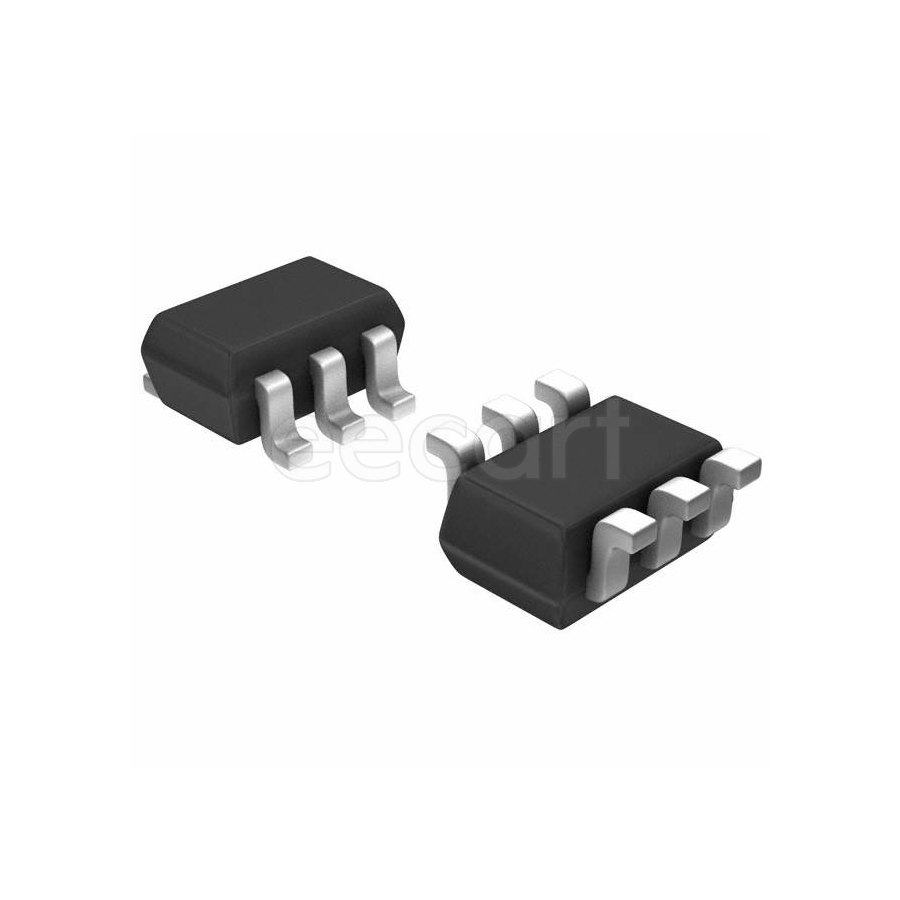

INA213AQDCKRQ1
Manufacturer:
Texas Instruments
Mfr.Part #:
INA213AQDCKRQ1
Datasheet:
Description:
Current / Power Monitors / Regulators SC-70-6 SMD/SMT 1 %
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 1.1 mm |
| Thickness | 0.9 mm |
| Radiation Hardening | No |
| Manufacturer Package Identifier | DCk(R-PDSO-G6) |
| Number of Elements | 1 |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Max Supply Voltage | 26 V |
| Min Supply Voltage | 2.7 V |
| Accuracy | 1 % |
| Number of Channels | 1 |
| Input Bias Current | 35 µA |
| Nominal Supply Current | 115 µA |
| Common Mode Rejection Ratio (CMRR) | 100 dB |
| Input Offset Voltage (Vos) | 100 µV |
| Voltage Gain | 33.98 dB |
| Power Supply Rejection Ratio (PSRR) | 140 dB |
| Schedule B | 8542330000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| RoHS | Compliant |
| Packaging | Reel |
| Operating Supply Current | 115 µA |
Stock: 1872
Distributors
pcbx
pcbxUnit Price$0.71643
Ext.Price$0.71643
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71643 | $0.71643 |
| 10 | $0.51553 | $5.15530 |
| 25 | $0.46594 | $11.64850 |
| 50 | $0.43772 | $21.88600 |
| 100 | $0.41122 | $41.12200 |
| 300 | $0.38971 | $116.91300 |
| 500 | $0.36933 | $184.66500 |
| 1000 | $0.35650 | $356.50000 |
| 3000 | $0.32573 | $977.19000 |
| 5000 | $0.31461 | $1573.05000 |
